4.I Water Resources

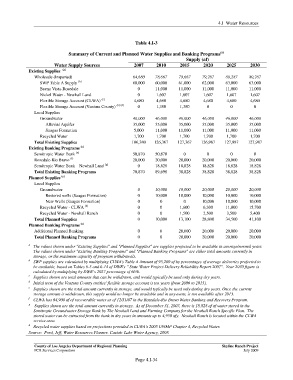

Table 4.I-3

(a)
Summary of Current and Planned Water Supplies and Banking Programs
Supply (af)
Water Supply Sources 2007 2010 2015 2020 2025 2030
(a)
Existing Supplies
Wholesale (Imported) 64,680 78,667 79,667 79,287 80,287 80,287
SWP Table A Supply (b) 60,000 60,000 61,000 62,000 63,000 63,000
Buena Vista-Rosedale 0 11,000 11,000 11,000 11,000 11,000
Nickel Water - Newhall Land 0 1,607 1,607 1,607 1,607 1,607
Flexible Storage Account (CLWA) (c) 4,680 4,680 4,680 4,680 4,680 4,680
Flexible Storage Account (Ventura County) (c) (d) 0 1,380 1,380 0 0 0
Local Supplies
Groundwater 40,000 46,000 46,000 46,000 46,000 46,000
Alluvial Aquifer 35,000 35,000 35,000 35,000 35,000 35,000
Saugus Formation 5,000 11,000 11,000 11,000 11,000 11,000
Recycled Water 1,700 1,700 1,700 1,700 1,700 1,700
Total Existing Supplies 106,380 126,367 127,367 126,987 127,987 127,987
Existing Banking Programs (c)
Semitropic Water Bank (e) 50,870 50,870 0 0 0 0
Rosedale-Rio Bravo (f) 20,000 20,000 20,000 20,000 20,000 20,000
Semitropic Water Bank – Newhall Land (g) 0 18,828 18,828 18,828 18,828 18,828
Total Existing Banking Programs 70,870 89,698 38,828 38,828 38,828 38,828
(a)
Planned Supplies
Local Supplies
Groundwater 0 10,000 10,000 20,000 20,000 20,000
Restored wells (Saugus Formation) 0 10,000 10,000 10,000 10,000 10,000
New Wells (Saugus Formation) 0 0 0 10,000 10,000 10,000
Recycled Water - CLWA (h) 0 0 1,600 6,300 11,000 15,700
Recycled Water - Newhall Ranch 0 0 1,500 2,500 3,500 5,400
Total Planned Supplies 0 10,000 13,100 28,800 34,500 41,100
Planned Banking Programs (c)
Additional Planned Banking 0 0 20,000 20,000 20,000 20,000
Total Planned Banking Programs 0 0 20,000 20,000 20,000 20,000
a The values shown under "Existing Supplies" and "Planned Supplies" are supplies projected to be available in average/normal years.
The values shown under "Existing Banking Programs" and "Planned Banking Programs" are either total amounts currently in
storage, or the maximum capacity of program withdrawals.
b SWP supplies are calculated by multiplying CLWA's Table A Amount of 95,200 af by percentages of average deliveries projected to
be available, based on Tables 6-5 and 6-14 of DWR's " State Water Project Delivery Reliability Report 2007". Year 2030 figure is
calculated by multiplying by DWR’s 2027 percentage of 66%.
c Supplies shown are total amounts that can be withdrawn, and would typically be used only during dry years.
d Initial term of the Ventura County entities' flexible storage account is ten years (from 2006 to 2015).
e Supplies shown are the total amount currently in storage, and would typically be used only during dry years. Once the current
storage amount is withdrawn, this supply would no longer be available and in any event, is not available after 2013.
f CLWA has 64,900 af of recoverable water as of 12/31/07 in the Rosedale-Rio Bravo Water Banking and Recovery Program.
g Supplies shown are the total amount currently in storage. As of December 31, 2007, there is 18,828 af of water stored in the
Semitropic Groundwater Storage Bank by The Newhall Land and Farming Company for the Newhall Ranch Specific Plan. The
stored water can be extracted from the bank in dry years in amounts up to 4,950 afy. Newhall Ranch is located within the CLWA
service area.
h Recycled water supplies based on projections provided in CLWA's 2005 UWMP Chapter 4, Recycled Water.
Source: Ford, Jeff, Water Resources Planner. Castaic Lake Water Agency, 2008.

County of Los Angeles Department of Regional Planning Skyline Ranch Project
PCR Services Corporation July 2009

Page 4.I-34
